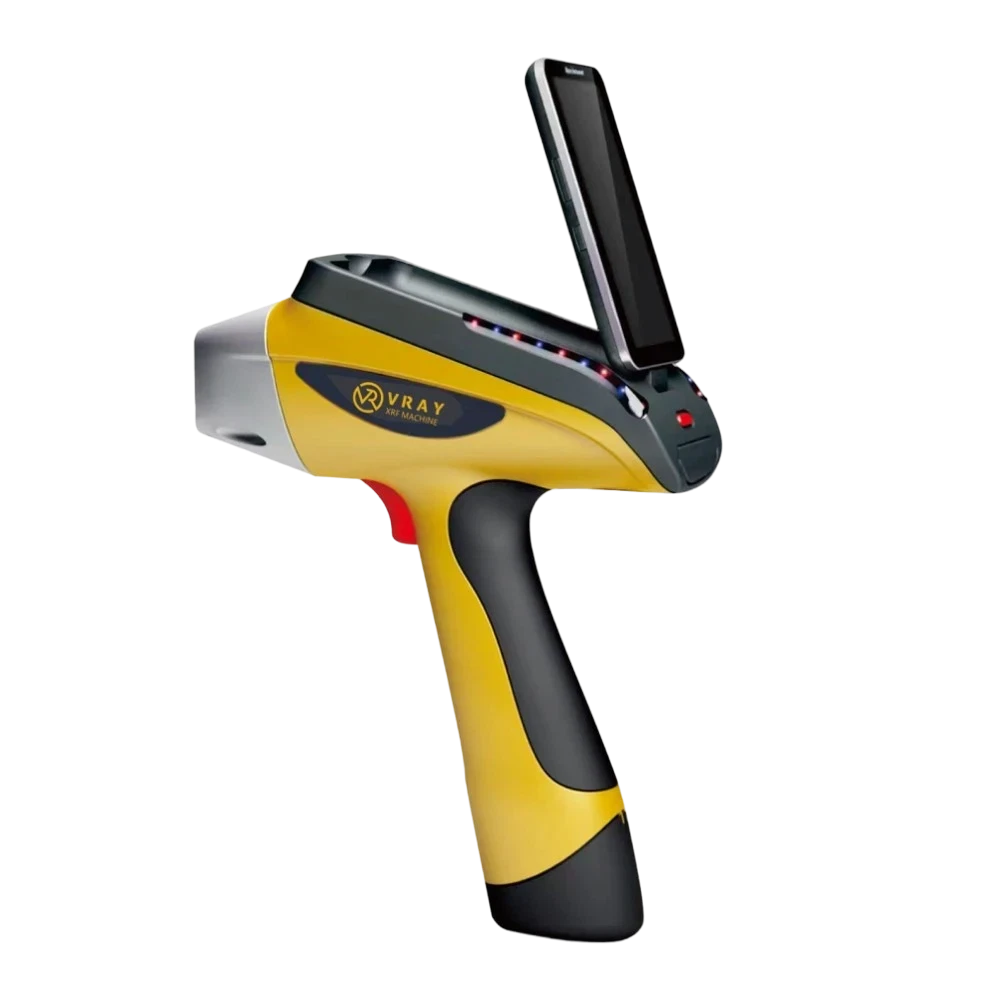

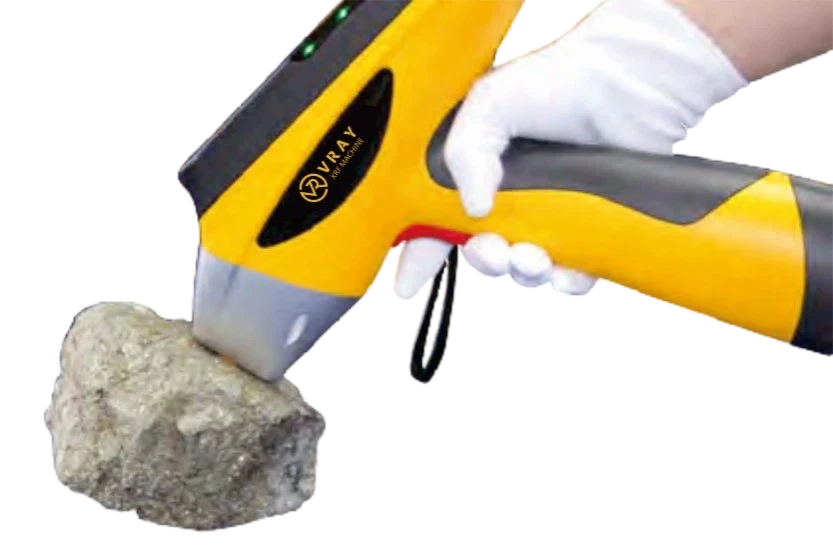

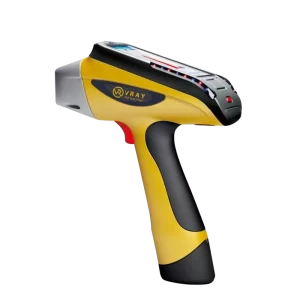

Handheld XRF Analyzer X-Ray Fluorescence Spectrometer Alloy，Soil and Ore tester VR-S9

Small, light and easy to carry

Rapid and accurate elemental analysis results with little or no sample preparation at all stages of a mining operation

Active radiation protection

Package size: 500 x 400 x 200mm
Machine size:244 x 90 x 330mm
Excitation source:Up to 50KV/200μA, silver target endwindow integrated miniature X ray tube and high voltage power supply Collimator and filter: 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions
Weight: 1.7KG （with battery）
Detector:Sdd or Fast-SDD detector
Sreen: 5″ transflective LCD touch screen
Microcomputer system:CPU:1G; system memory: 1G; extend-edstored maximum support 32G; standard 4G for mass storage data
Temperature:-20℃～50℃
Humidity:<90%（Noncondensing）

Send Inquiry Live Chat

Product Details

V-Ray handheld XRF analyzer VR-S9, an easy to carry device designed for all stages of alloy, soil heavy metals and mineral. From grassroots exploration and development, to ore grade control, and even environmental surveys, unlike traditional experiments Compared with the chamber method, it saves time, worry and effort.

Advangtages:

Small, light and easy to carry
5″ transflective LCD touch screen
Rechargeable lithium battery, standard is 9000mAh, sustainable, work up to 12 hours;
Simultaneous analysis 40 elements
Key intelligent matching the best curve that no need to select curve
Digital multi-channel technology, SPI data
transmission, quick analysis, the high count
data; waterproof minu USB, and can be
connected with a desktop computer
